Included oil filter nipple.

Current Location:Home - Product - Thermostatic valve - Included oil filter nipple.

Thermostatic valve LTC

Depending on the temperature of the oil coming in from the oilseparator,the LGTC valve regulates the amount of oil flowing through the oil cooler.The oil flowing back from the oil cooler mixes with the remaining hot oil and then goes into the fitted filter.After filtration the oil leaves the LGTC and returns to the air end system.

Details Introduction

Installation:The thermostatic valve installed beween the oil separator and the air end,included oil filter nipple.

Maintenance: Ask for original STABLE replacement parts.

Ports:

IN Oil coming form oil separator

TC Hot oil going to the oil cooler

FC Oil coming back from the oil cooler

OUT Oil going to the air end

图片1.png 图片2.png

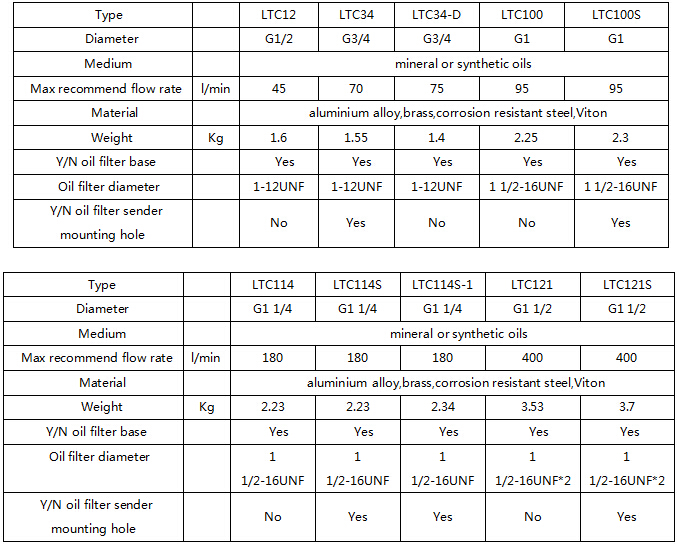

Technical parameters
