Be used in water lubricated screw compressor

Intake valve LD65-H、L85-H、L120-H、L160-H

LD65-H、L85-H、L120-H、L160-H are normally closed, it can

open in response to a control pressure signal，they are

often used in water lubricated screw compressor.

Details Introduction

Features:

1.Hard oxidation of aluminum alloy parts such as valve body,

The others are using stainless steel material, They provide

intake valve anti-oxidation and corrosion resisting protection,

and the structure is simple and reliable.

Butterfly type intake valve is consistently stable and efficient

depending on the design of heavy hammer and check function.

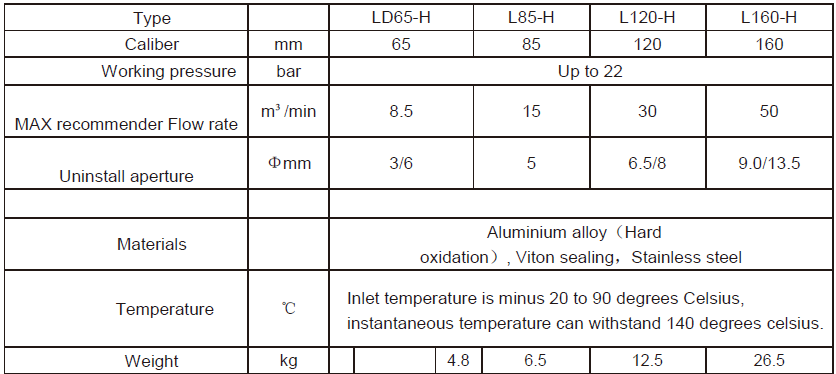

Technical parameters:
