Be used in frequency screw compressor

Intake valve LD40-FC、LD50-FC、LD65-FC、L85-FC、L120-FC、L160-FC

LD40-FC、LD50-FC、LD65-FC、L85-FC、L120-FC、L160-FC

By controlling the compressor inlet flow control the system pressure

of the compressor. It is often used in frequency screw compressor.

Details Introduction

Features:

1.It is equipped with venting valve, and the structure is simple reliable.

2.When air compressor is unloading, the internal pressure of the

system can be adjusted by venting valve.

3.Butterfly type intake valve is consistently stable and efficient

depending on the design of heavy hammer and check function.

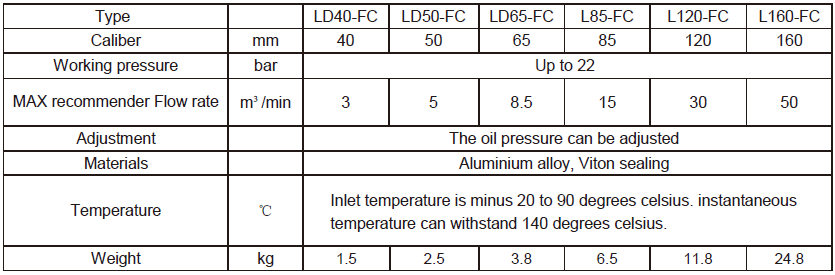

Technical parameters:

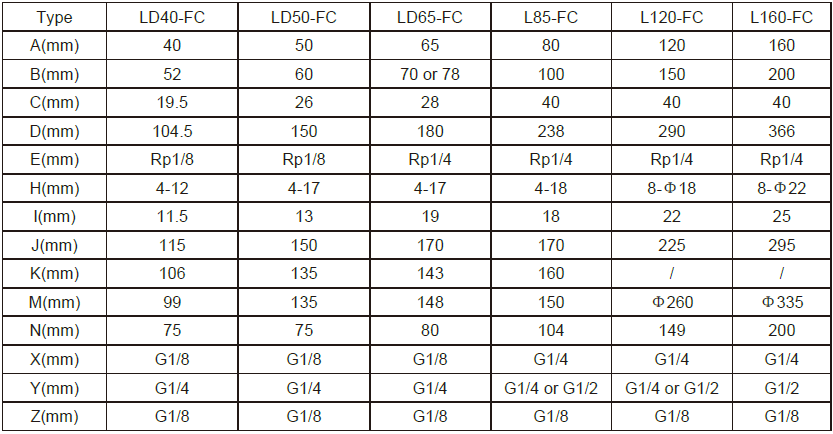

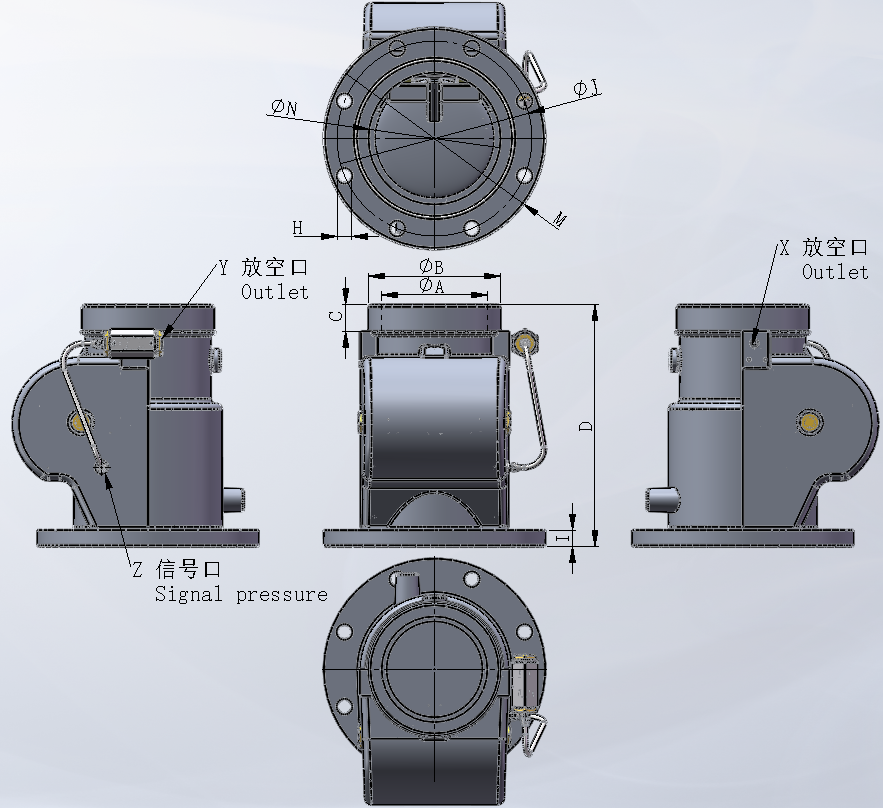

Dimensions(mm)

LD40-FC、LD50-FC、LD65-FC、L85-FC、L120-FC、L160-FC
